Verbum 9 Tip 9u: Guide section basics - part 1

MJ. Smith

Docx files for personal book: Verbum 9 part 1; Verbum 9 part 2; Verbum 9 part 3; Verbum 9 part 4; Verbum 9 part 5; Verbum 9 part 6; Verbum 9 part 7;  How to use the Verbum Lectionary and Missal; Verbum 8 tips 1-30; Verbum 8 tips 31-49

Reading lists: Catholic Bible Interpretation

Please be generous with your additional details, corrections, suggestions, and other feedback. This is being built in a .docx file for a PBB which will be shared periodically.

Previous post: Tip 9t Next post: Tip 9v

The guide section basics

It’s time to address the features available in all guide sections, most notably the add note feature.

• Instructions available only in initial state
• Features on the section heading bar directly
• Features in the section heading bar menu
• Feature in the settings menu
• The Add Note at the bottom of each guide section

At this point, I no longer consider it necessary to show the function of collapse/expand options.

Initial state instructions

When a guide is first opened, a blue instruction box appears telling the user what type of input is expected. Note that when there is no default value, the input box will also name the type of input expected. Using Sermons as an example, one sees from the Command box options that Sermons can take multiple types of data as input.

These result in different instructions in the opened guide, with the Bible reference guide defaulting to the last used value.

Section heading bar

The section heading bar has two common formats. The first is for guide sections that have no settable options:

The second is for guide sections that have settable options, most frequently allowing the choice of collections against which to run the section.



Visual cue	Data element	Action	Response
1,2,3 arrowhead; none	Arrowhead Title Section bar	Click	Expand/contract (toggle) the section below the heading
		Right click	Displays section header bar menu which is described in detail in the next section.
4 circle question mark	Question mark	Mouse-over	Opens preview of Verbum Help documentation relevant to guide section.
		Click	Opens Verbum Help documentation relevant to guide section.
5 x	X	Click	Deletes section from guide
6 settings with downward triangle	Settings	Click	Opens a settings menu specific to the guide section.



Section heading bar menu

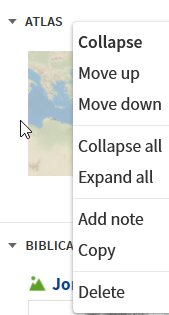

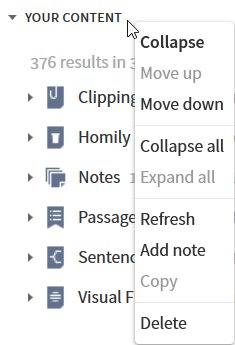

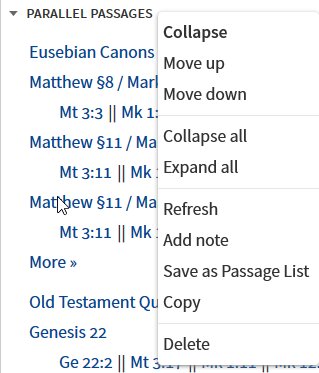

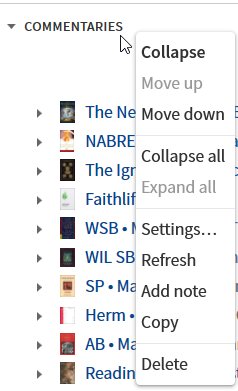

Examples of the section heading bar menu:



Menu item	Action
Collapse/Expand	Collapses or expands the section as a toggle.
Move up	Move the section ahead of the section currently immediately ahead of it.
Move down	Move the section below of the section currently immediately below of it.
Collapse all	Collapses all the sections in the guide to the guide section heading bar.
Expand all	Expands all the sections in the guide to display their data.
Settings	Opens the settings menu (see below)
Refresh	Rebuilds the guide section using current resources and settings
Add note	Invokes the note tool as embedded into the guide section. See Add Note below.
Save as passage list	The data shown on the page is saved in Passage List format. The references must be versified for this action to be possible.
Copy
Delete

Example of save as passage list from ancient literature

Original guide

Passage list in compact mode

Passage list in full mode

Note that passage lists can be manually edited or automatically merged with other passage lists to produce new lists containing:

• Union: all items on either list
• Intersection: only items appearing in both lists
• Difference: only items that appear in only one list
• Symmetric difference: all items appear on a list but not on both lists

Example of copy from ancient literature

The results of clicking on copy in the section header bar menu then pasting into this document:[quote]

Ancient Literature

Apostolic Fathers

Topical

Herm, V IV, i, 4

Phrase

Herm, V I, i, 4

Church Fathers

Quotation

Cyr. Hier., Cat. Lect. 3.6

Iren., Adv. Haer. 3.16.3

Orig., Cont. Cels. 2.4; Hom. Gen. 2.5; Hom. Lev. 2.4.5; Hom. Jos. 1.4

Aug., Ep. 169; De civ. Dei 15.23; 23.1; Contra Petilian. 2.37.87

Tert., De bapt. 10

Allusion

Aug., Ep. 169; 169.2.5; 3.10; 199.12.47; 47; De Trin. 1.4.7; Enchir. 14.49; Contra Faustum 2.1; 3.1; 23.1; De consens. Ev. 2.6.18; 12.25; 26; 29; 13.30; 14.31; 4.1.2; Serm. (NPNF) 2.1; Tract. in ev. Joan. 4.8; 16.3; 5.6.2; 6.5; 10.6.3; 13.4; 36.5; 94.4.2; Enarr. in Ps. 29.2; 35.9; 36.9; 49.11; 51.13; 61.18; 67.23; 102.1; Div. qu. 43; Gen. Litt. 1.2.5; Answer to Maximinus 2.26.4

Basil, Con. Eun. 2.15; Homa 20.6; 29.4

Jerome, Ep. 57.9; 125.7; Lucif. 7; Hom. 91

Orig., Cont. Cels. 2.4; Comm. Jo. 1.14; 32; 6.16; 31; Comm. Matt. 14.25; Hom. Jos. 3.3; Hom. Lk. 14.10; Comm. Ro. 1.3.5; On Mart. 5.30

Clem. Al., Paed. 1.6; Misc. 1.10.46; 21.136; 3.6.53

Topical

Orig., Cont. Cels. 2.4; Comm. Jo. 1.14; 32; 2.17; 25; 6.23; 24

Cyr. Hier., Cat. Lect. 3.6

Aug., Ep. 169; Contra Petilian. 2.37; De consens. Ev. 2.6.18; 14; 14.31; Tract. in ev. Joan. 5.3; 4; 5; 6; 6.5; 10.6

Hil., De Trin. 3.11

Jerome, Ep. 57; 57.5; 9; 125.7; Lucif. 7

Dead Sea Scrolls Sectarian Material

Echo

1QS Col. ix:19; 1QS Col. viii:14; 4Q246 Col. ii:1

Topical

1QHa Col. viii:11; 1QHa Col. xii:31; 1QHa Col. xv:7; 1QHa Col. xx:11; 1QS Col. i:24; 1QS Col. iii:1; 1QS Col. iii:4; 1QS Col. iii:7; 1QS Col. iii:9; 1QS Col. iv:20; 1QS Col. iv:21; 1QS Col. iv:6; 1QS Col. ix:19; 1QS Col. v:1; 1QS Col. v:13; 1QS Col. v:14; 1QS Col. viii:13; 1QS Col. xi:14; 4Q174 Frags. 1 i, 21, 2:11; 4Q521 Frag. 2 ii:6; CD–A Col. xii:14

Judaica

Topical

y. Erub. 22D

Ter. 10:9; Pesah. 8:8; Yoma 6:2; 8:9

b. Hag. 13A; Sanh. 89A

Nag Hammadi Codices

Allusion

NHC IX 3, 39:23–28; NHC XI 2b, 41:10–NHC XI 2b, 41:38

New Testament Apocrypha

Allusion

Encom. Mar. 82:2; The Life and Martyrdom of John the Baptist 3:3; Life Bapt. Serap. 5:8; Ep. Chr. Heav. 2:14

Topical

Gos.Th 78; Christ's Descent into Hell 2; Encom. Bapt. 7:3; 18:6; The Life and Martyrdom of John the Baptist 2:2; 3:1; 2; Life Bapt. Serap. 3:12; 8:1; 9:3; 4; 7; Ep. Chr. Heav. 2:14

Lexical

Encom. Mar. 82:1; Encom. Bapt. 7:4; 11:3; The Life and Martyrdom of John the Baptist 1:1; 2:1; Hist. Sim. Ceph. 4:5

Old Testament Pseudepigrapha

Allusion

OdesSol 7.15

Topical

Mart. Ascen. Isa. 2.11; T. Levi 18.6; OdesSol 7.15; 22.6; 7; 24.1; 2

Phrase

T. Levi 18.7; JosAs 14.2

Lexical

Mart. Ascen. Isa. 1.4; 1 En. 49.3; 62.2; 105.2; T. Jud. 23.5; Sib. Or. 4.168; 4Bar 7.24; JosAs 14.1; OdesSol 7.16

Works of Josephus

Topical

Life 11

Lexical

Ant 18.117, 20.97, Wars 3.515, 4.469

Works of Philo

Lexical

Abr 121; Decal 2

 Note forum software removes shading on the headings.

This can be used as a work list, crossing items out when reviewed or highlighting items that are particularly useful.
